Most traders meet intraday open interest as a table, the way the exchange’s own option chain presents it: a strike, a number, a change since yesterday. That is a photograph of the option book, and it is useful. But open interest moves all day, and the strikes that carry the most of it, the call wall above spot and the put wall below it, do not stay put. They shift as writers add and cover. Read off a table, you only ever see where the walls ended up. Drawn on the price chart minute by minute, intraday open interest becomes a record of how those levels moved while the index was trading against them, which is the thing you actually wanted to know. This guide explains how to read a session chart that carries the option levels, what each line means, and what the read line at the top does and does not claim.
What intraday open interest looks like on a chart

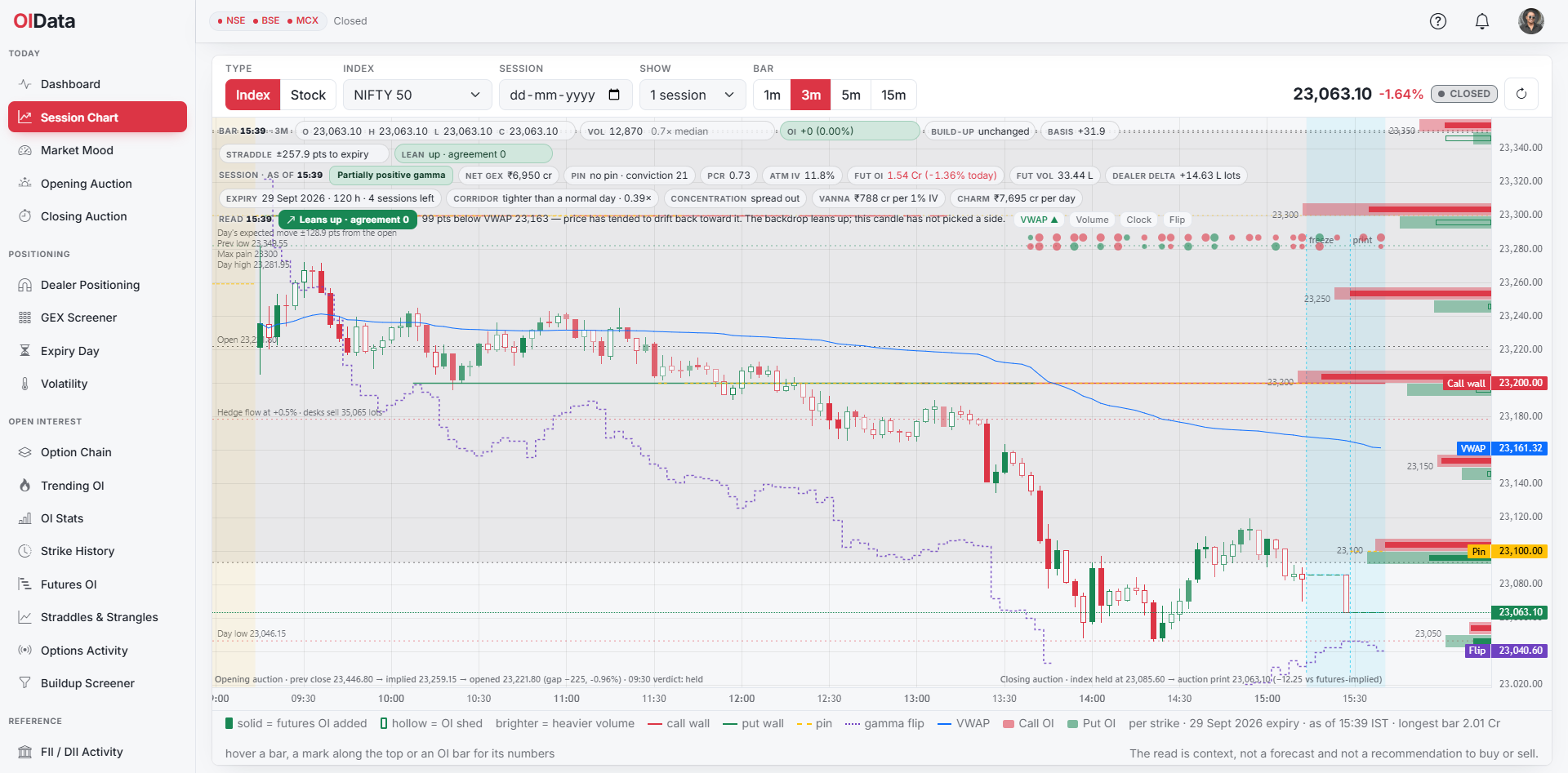

Start with the candles. On the Session Chart they are one-minute bars of the index or the stock you pick (grouped into three, five or fifteen minutes if you prefer), and each candle carries two things a normal chart does not. Its body is solid when the current-month future’s open interest rose during that bar and hollow when it fell. A solid green bar is a long build-up, a solid red bar a short build-up, a hollow green bar short covering and a hollow red bar long unwinding, the same four labels the OI build-up guide explains. A brighter colour means the bar’s volume was above the session’s median. So a bright solid green candle is fresh buying on heavy volume, and a dull hollow green candle is shorts quietly leaving.
Then the levels. The call wall is the strike carrying the most call open interest above spot, drawn in red; the put wall is its mirror below spot, drawn in green. Both are drawn bar by bar rather than as one flat line, so when the wall relocates you see a step in the line at the minute it happened. The pin, the strike pulling price toward it, is an amber dashed line, and the gamma flip, the level where dealer hedging changes character, is a purple dotted path that follows it through the day. Each current level is named on the price axis.
Around them sit quieter lines: the open, the previous session’s close, high and low, the day’s own high and low, max pain, and the hedge flow desks would have to trade if the index moved half a percent either way. The grey band is the day’s share of the expected move: the at-the-money straddle prices the move to expiry, and one session gets that divided by the square root of the sessions left. Beside the candles, on the right, are the open-interest bars per strike for the current expiry, so the ladder the walls come from is on the same screen.
Why the walls moving matters more than where they are
A wall at 23,200 tells you writers are defending 23,200. A wall that moved from 23,300 to 23,200 at 11:40 tells you they gave up 23,300 and regrouped one strike lower, which is a different and more useful fact. On a table you would have to compare two snapshots to notice it; on the chart it is a visible step, and you can see what price was doing at the time.
That is the whole case for intraday open interest on a chart. The support and resistance that open interest implies is not static, and the sequence in which the levels move against price is where most of the information sits. A put wall that holds while price tests it twice reads differently from one that slides lower on the second test. A call wall that gets rebuilt one strike higher while the index rallies means the lid is being lifted, not defended.
The three legend lines
At the top left of the chart are three lines, each labelled with its time. The first, BAR, is the bar under your cursor: its open, high, low and close, its volume against the session’s median, the change in futures open interest and the build-up label it earned, the basis, and the straddle’s expected move to expiry. Hover any candle and the line updates.
The second, SESSION, is the positioning context as of the last minute the collector wrote: the gamma regime and net gamma exposure, the pin, the put-call ratio, at-the-money implied volatility, futures open interest and its change on the day, futures volume, dealer delta, the expiry and how many sessions remain, the width of the corridor between the walls, how concentrated the gamma is, and the vanna and charm figures. These are the same numbers the dealer positioning cockpit computes from the option chain every minute; the chart simply keeps them beside the candles.
The third, READ, is the read: which way the backdrop leans, how much its parts agree on a scale of zero to a hundred, one sentence, and a chip for every reason. The things that change a decision are shown as badges: the build-up, heavy volume, the gamma regime, a strike that is pinning, expiry day. Green or red chips carry the direction of an open-interest change.
What the read is, and what it is not
The read asks one question of every candle: which way does the backdrop lean right now, and do its parts agree? Its parts are tendencies found in the stored sessions, for example that a move beyond one expected move from the open has tended to give some back, or that price has tended to drift toward VWAP, each weighted by how often it held. It lists the reasons rather than hiding them, so a read that says Leans up, agreement 0 is telling you the parts disagree and you should not lean on it.
It is not a forecast and not a recommendation. On the sessions it was calibrated on, the combined lean matched the next fifteen minutes’ direction about half the time on the sessions held out, which is why it is shown as context on the read line and never as an arrow on a candle. Agreement also drops at the times the clock outranks positioning: the first fifteen minutes, the last ten before the cash freeze, the closing auction and expiry afternoons. The chart says so in its reasons instead of pretending to a confidence it does not have.
The two auctions
Two shaded bands frame the session. The one before 09:15 is the opening auction, when no index prints; it carries the previous close, the implied open, the gap the bell printed and, once it is in, the 09:30 verdict on whether the gap held. The band from 15:15 is the closing auction: the index stops updating at 15:15 while closing orders are collected, the auction reprints it in one step around 15:30, and futures trade on to 15:40. The candle that jumps off the flat line is the auction print, marked with its divergence from the futures-implied cash level. The opening auction guide and the closing auction guide cover both in detail.
What happened, minute by minute
Along the top of the chart, small marks replay the options-activity ranking and the flow reads through the day: a strike-side that traded four times its usual five-minute volume, or a strike-side whose open interest moved three percent in one bucket, with the read the options activity page gave it. Hover a mark for the time and the fact. These are facts with a time, not directions, and they are the quickest way to see whether a move in price came before or after a burst in the book, which is intraday open interest read at its finest grain.
A worked reading
At 11:40 the index prints a green candle 90 points above VWAP, 1.4 expected moves above the open, under a negative-gamma label with the pin two strikes below. The read line says Leans down, agreement 71: stretched moves have tended to give some back, price has tended to drift toward VWAP and, under that label, toward the pin; the one part leaning up is a futures long build-up. The candle is running against the backdrop, the read says so and lists why, and you weigh that against what you see. Nothing more is claimed, and that is how intraday open interest should be used: as the backdrop to a decision, not the decision.
Where to read intraday open interest
The Session Chart in OIData draws all of this for NIFTY, BANK NIFTY, SENSEX and any NSE F&O stock. Pick a past session and a span of up to five sessions from the controls to study how the walls behaved on other days. The first time a stock is opened it joins the collector, so its first minute can take a moment; after that it streams like an index. For the same levels as numbers rather than lines, the dealer positioning page is the source; for the change in open interest as a table of intervals, use Trending OI.
Intraday open interest FAQ
What does intraday open interest mean? Open interest measured through the session rather than once at the close: how many contracts are open at each strike minute by minute, and therefore where the call wall, the put wall and the pin sit at any moment of the day.
Why draw it on the price chart? Because the levels move, and the sequence in which they move against price is the information. A table shows where a wall ended up; the chart shows when it relocated and what price was doing at the time.
Is the read line telling me to buy or sell? No. It is a reading of hedging pressure, open interest and volume against the candle on screen, with its reasons listed. It gives you context to decide; it does not decide.
Does intraday open interest work for stocks? Yes, for any NSE F&O stock. Stock chains have fewer strikes and wider spacing, so the walls are coarser and a single strike can reshape the picture.
Takeaways
- Intraday open interest is the option book through the session, not a closing snapshot; drawn on the chart, the walls become a record of when they moved.
- Candle bodies carry the futures open-interest change: solid for a build, hollow for an unwind, brighter for heavy volume.
- The read line leans, scores agreement and lists reasons; intraday open interest is context, never a forecast.
- The auction bands frame the day: no index prints before 09:15, and the index freezes at 15:15 until the auction print.
